Aluminium windows & doors ЕТЕМ E45 Thermo

Aluminium windows & doors 1
Aluminium windows & doors 2

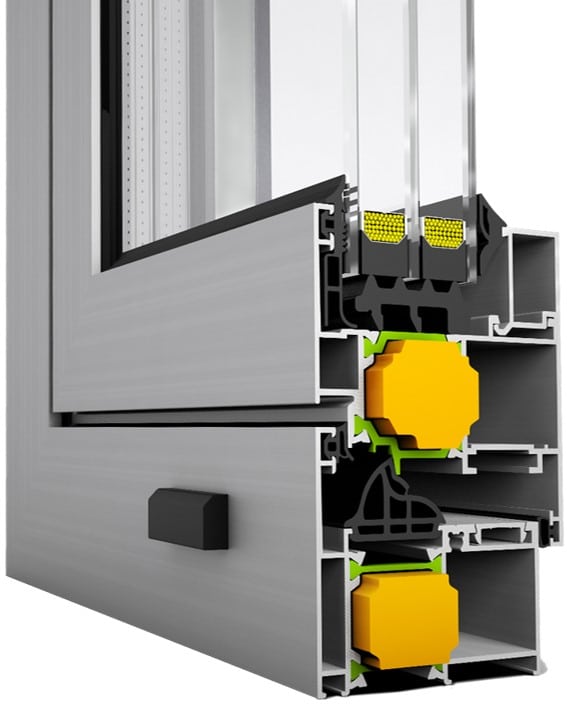

ETEM aluminum system for doors and windows with interrupted thermal bridge E45 is a high class system manufactured in Greece. The windows of this series are modern and very effective with many times higher indicators of thermal insulation and actually removed infiltration through high quality sealants and built-in thermal barrier / thermal bridge /.

A significant advantage over competitors in this class is achieved by means of a specially designed and massive central third seal of the frame, which significantly helps to reduce noise (up to 42 dB) and minimizes the passage of dust particles. The system is designed for glazing of residential and commercial buildings.

It features elegant shapes and a clean design, which gives a contemporary style to any building. With one hand movement you can create a comfortable connection between the interior and exterior of your home. All points of the profiles that are subjected to the greatest load are further reinforced. In combination with the practical design of the system, they guarantee a simplified function of the element in combination with excellent heat and noise insulation characteristics.

Possible types of opening are from the classic opening to parallel sliding type VW and sliding type accordion. An additional advantage are the various color combinations of a wide range of decors, which provides creative freedom in each individual project.

Advantages of the system:

  • Structural width of the frame – 60 mm;
  • Structural width of the sash – 67.5 mm;
  • Double glazing – up to 47 mm, including triple;
  • Heat transfer coefficient – up to Uw = 1.2 W / m²K; and Uf = 2.1 W / m2.K
  • Burglary resistance – class RC2.
  • Types of gasket – high quality EPDM with additional third gasket;
  • Exceptional for its category (60 mm wide) waterproofing and sound insulation characteristics Class A profiles according to the European standard EN 12608: 2003;
  • Extremely long life – over 60 years;
  • Light-resistant and highly resistant to climatic influences;
  • Attractive design combined with high functionality;
  • Maximum easy cleaning and maintenance;
  • Possibility for one-sided or two-sided painting in a wide range of colors: 1600 RAL colors, including several standard wood imitations and eluxation
  • 100% recyclable and excellent eco-balance.
  • Sound insulation – 42 dB;

Useful for system ETEM E45:


ETEM – E45 broshure

ETEM – E45 product passport

ETEM – E45 catalogue

Aluminium windows & doors ЕТЕМ E75 Thermo



Aluminium windows & doors 3
Aluminium windows & doors 2

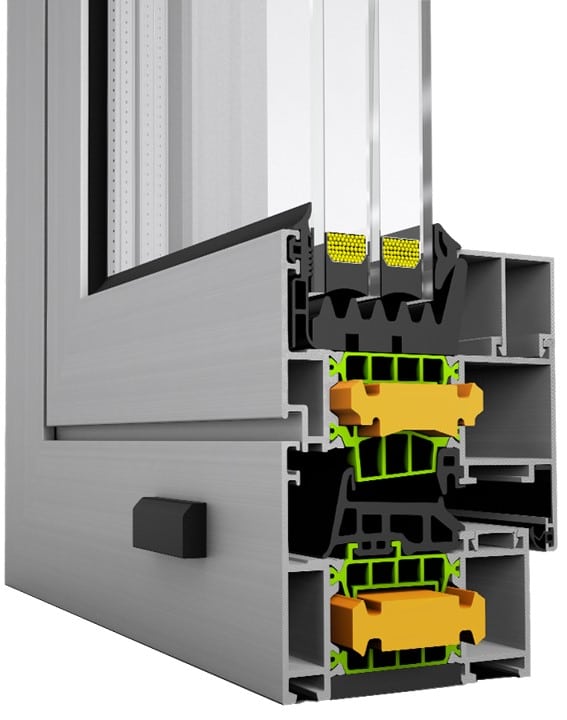

ETEM aluminum door and window system with interrupted thermal bridge E75 is a high class system manufactured in Greece. The windows of this series are modern and very effective with many times higher indicators of thermal insulation and actually removed infiltration through high quality sealants and built-in thermal barrier / thermal bridge /.

A significant advantage over competitors in this class is achieved by means of a specially designed and massive central third seal of the frame, which significantly helps to reduce noise (up to 52 dB) and minimizes the passage of dust particles. The system is designed for glazing of residential and commercial buildings.

The design of the E75 profiles is straight, which ensures its compliance with modern design trends. With one hand movement you can create a comfortable connection between the interior and exterior of your home. All points of the profiles that are subjected to the greatest load are further reinforced. In combination with the practical design of the system, they guarantee a simplified function of the element in combination with excellent heat and noise insulation characteristics.

Possible types of opening are from the classic opening to parallel sliding type VW and sliding type accordion. An additional advantage are the various color combinations of a wide range of decors, which provides creative freedom in each individual project.

Advantages of the system:

  • Structural width of the frame – 60 mm;
  • Structural width of the sash – 67.5 mm;
  • Double glazing – up to 47 mm, including triple;
  • Heat transfer coefficient – up to Uw = 1.2 W / m²K; and Uf = 2.1 W / m2.K
  • Burglary resistance – class RC2.
  • Types of gasket – high quality EPDM with additional third gasket;
  • Exceptional for its category (60 mm wide) waterproofing and sound insulation characteristics Class A profiles according to the European standard EN 12608: 2003;
  • Extremely long life – over 60 years;
  • Light-resistant and highly resistant to climatic influences;
  • Attractive design combined with high functionality;
  • Maximum easy cleaning and maintenance;
  • Possibility for one-sided or two-sided painting in a wide range of colors: 1600 RAL colors, including several standard wood imitations and eluxation
  • 100% recyclable and excellent eco-balance.
  • Sound insulation – 42 dB;

Useful for system ETEM E75:


ETEM – E75 broshure

ETEM – E75 product passport

ETEM – E75 catalogue

Aluminium windows & doors

Altest Eskimos

Aluminium windows & doors 5

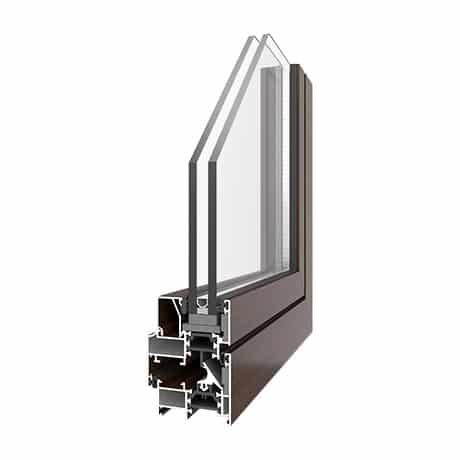

The aluminum system “530 ESKIMOS” is a budget variant of aluminum windows with interrupted thermal bridge 24 mm. The function of the polyamide profile is to divide the profile into two parts to interrupt the heat transfer, thus providing better thermal insulation.

The other advantage of this system is that it is designed so that all types of openings can be applied – both uniaxial and biaxial in the manufactured doors and windows. The clean design of the profiles allows the use of a wide variety of joints, hinges and other accessories. The profiles of this system allow the installation of glazing from 20 to 29 mm depending on the customer’s wishes.

According to the DIN 1725 T1 standard, the aluminum used for the production of the profiles from the “530 ESKIMOS” system is AIMgSiO0.5 F22 and meets all quality standards and norms.

Advantages of the system:

  • Watertightness Class 5A
  • Wind resistance class C2 Load-bearing capacity of load protection devices class 4 Air permeability Class 4
  • Noise isolation 37 dB
  • Heat transfer coefficient U = 1.15 W / (m2.K)

Aluminium windows & doors

Altest sliding

Aluminium windows & doors 6

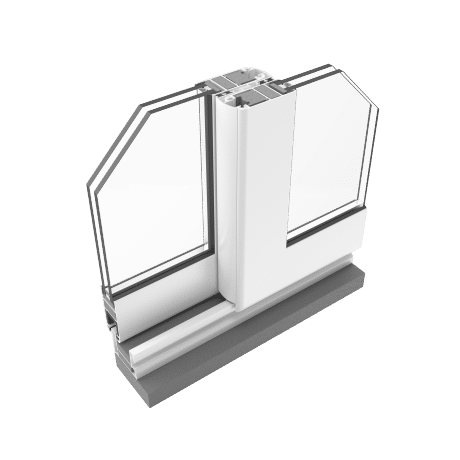

This sliding aluminum system is without an interrupted thermal bridge and is extremely suitable for the interior as well as the exterior for non-residential spaces. Extremely suitable solution for external and internal partitions, glazing of terraces and conservatories.

A well-known system on the market has the main advantage of all variants of sliding systems is that they save valuable space.

  • The system offers single, double and triple rails.
  • Various possibilities for fillings such as: single glass, double glazing, chipboard panels, thermal panels and hunter type filling with different thickness from 4 mm to 20 mm.
  • Possibility for powder painting in any color according to RAL, painting in wood decors and other methods for surface treatment – anodizing.
  • High class metal rollers built into the lower part of the sash.
  • Possibility of locking by means of a lock with a secret cartridge.
