Aluminium railing systems 1

Aluminum railings are an extremely good and efficient solution for both interior and exterior. The advantages here are numerous, which makes them the most preferred, namely: low cost, high resistance to weathering, quick and clean installation, the ability to individually design and look, do not corrode compared to metal railings, the great variety of profiles, assemblies and colors.

They are used on stairs, terraces, office and residential buildings, ramps and in the garden. The aluminum railings are certified for pool enclosures to prevent children accidents. Combinations of round and square profiles, with vertical or horizontal filling, with glass, type of French railing and others are possible.

The coating has high-strength elution as standard in 2 shades – natural and champagne, but Profil Group offers painting in all colors under the RAL system catalog, as well as a range of wood colors.

For a high-end interior solution, Profil Group has developed several designs of wooden handles in different colors, which are increasingly replacing aluminum.

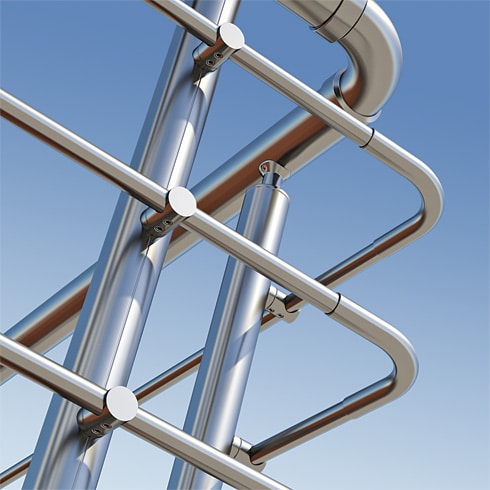

Round system

Horizontal profile system


Aluminium railing systems 2

Horizontal string aluminum railing is the most common model because of its low price. Horizontally, round aluminum tubes of diameter 16 mm or so-called strings are placed. The straight line has 3 horizontal strings, but can be added or reduced. This railing system finds the most frequent use of staircases, on-board terraces, ground floor partitions and patios. Not recommended for terraces that have to be built up to 105 cm in height from the floor. Due to the large distance between the profiles, it is extremely dangerous for young children but not only.

The standard handle is aluminum with a diameter of 50 mm, but as an option for internal mounting it is possible to install wooden 45 mm with a varnish coating. Available in 2 aluminium colors – natural aluminum and champagne, 3 wood imitation colors golden oak, wallnut, dark oak and all RAL colors.

Balcony railing – See French railing and all glass railing models.

French type system


Aluminium railing systems 3

With the French-type aluminum railing, 2 round aluminum tubes with a diameter of 16 mm or the so-called strings (upper and lower) are placed horizontally, and a grid is built vertically every 10-12 cm. This railing is most often used on terraces and staircases. It is safe for children due to the small distances between the profiles. The standard handle is aluminum with a diameter of 50 mm. This model stands extremely elegantly on the facade and is a symbol of French architecture for the grid of a parapet system. It is available in 2 aluminium colors – natural aluminum and champagne color, 3 wood colors – golden oak, walnut and dark oak and the possibility of painting in RAL colors.

Glass railing system


Aluminium railing systems 4

The aluminum railing with glass has a clean look and is suitable for both stairs and terraces. An 8 mm anti-shatter laminated glass cover is placed between the vertical columns. In practice, the glasses here resemble car windshields, which, when broken, remain intact. It is possible to place a horizontal string above the glass for better vision. As standard, the glass is transparent, but it is possible to make it in green, brown, gray or matte, as an additional option. The standard handle is aluminum with a diameter of 50 mm. It is available in 2 aluminium colors – natural aluminum and champagne color, 3 wood colors – golden oak, walnut and dark oak and the possibility of painting in RAL colors.

Square system

Horizontal profile system


Aluminium railing systems 5

This is the latest and extremely beautiful and simple system that has become the most preferred and sold. It gives a stylish and sophisticated look to the facade. It is made of square and rectangular aluminum profiles and, due to its clean and straight shapes, it is the most popular model in this class. Extremely strong and with a sophisticated look, it becomes a good solution, both for the exterior and for the interior. It is suitable for stairs and terraces. The standard handle is a rectangular aluminum with a diameter of 25×60 mm, a column with an diameter of 40×40 mm and a string of 15×15 mm.

The classic version has 3 horizontal strings, but more can be added for the more demanding ones. Available in 2 aluminium colors – natural aluminum and champagne color, 3 wood colors – golden oak, walnut and dark oak and possibility of painting in RAL colors.

Glass railing – best seller

Aluminium railing systems 6

A modern solution with a clean and simple look that has become one of the most preferred and best-selling models. The system mimics expensive glass railings, but at a much lower cost. It gives a stylish and sophisticated look to the facade. It is made of square and rectangular aluminum profiles and, due to its clean and straight shapes, it is the most liked model in this class. Extremely strong and with a sophisticated look, it becomes a good solution, both for the exterior and for the interior. It is suitable for terraces, roof decks and verandas. The standard handle is rectangular aluminum with a diameter of 25×60 mm, a column with an diameter of 40×40 mm.

The special thing here is that the glasses are placed in front of the speakers, leaving small distances between them. This achieves the visual illusion of the more expensive all-glass systems. The standard glass is transparent, but Profile Group recommends making it with colored glass: green, brown, gray or matte. It is available in 1 aluminium color – champagne color, 3 wood colors – golden oak, walnut and dark oak and can be painted in RAL colors.

Advantages of Aluminium railings

  • They are highly resistant to all weather conditions including salty air

  • Construction on an individual project

  • Possible painting according the  RAL color system

  • Do not corrode unlike metal railings

  • Do not change color over time

  • Resistant in aquatic environments to enclose children’s pools

  • Short production time

  • Aluminium railings are with lowest price

  • Fast and clean installation

  • Opportunity for floor and front mounting

  • A wooden handle can be fitted
